Calcium Zinc Stabilizer YC-312 for dark and black UL80/105℃ PVC Cables

Calcium Zinc Stabilizer YC-312 for dark and black UL80/105℃ PVC Cables

Description :

Inteam’s YC-312 is an environmentally friendly PVC calcium-zinc composite heat stabilizer. It is manufactured using high-grade calcium and zinc fatty acids as base components, combined with high-performance heat-resistant additives and primary and secondary antioxidants, through a special process. This product is suitable for dark and black PVC materials and related products, and performs particularly well in the wire and cable industry. Specifically, it meets the production requirements for wires and cables and computer peripheral cables conforming to the UL 80/105℃ standard, and is also suitable for HI-90 cable sheathing materials. It is compatible with 90℃ general power cables and control cables conforming to GB/T 12706 (equivalent to the international IEC 60502 standard).

Chat Now Message Email

Product Description:

Main Components:

Ca-Zn series organic complex. Based on high-grade calcium fatty acid and high-grade zinc fatty acid, it is compounded with high-performance heat-resistant additives, primary and secondary antioxidants, etc., and processed through a special composite technology.

Physical Properties:

Appearance: Light yellow to white powder; Specific Gravity: 1.5±0.1

Characteristics:

Environmentally friendly, complying with the requirements of RoHS, REACH, PAHS and NO-16P.
Superior anti-precipitation performance when used in black and dark-colored products.
Excellent electrical insulation, water and oil resistance, and strong water absorption resistance, which is beneficial for secondary processing.
The cable surface is smooth, bright in color and full in coloring.
Resistant to high shear, no sticking particles during air cutting, and supports full-speed operation of extrusion equipment.
Less material discharge and rubber discharge during wire extrusion, resulting in low material waste.
Good dispersibility, fast temperature rise during powder mixing, and no powder flying.

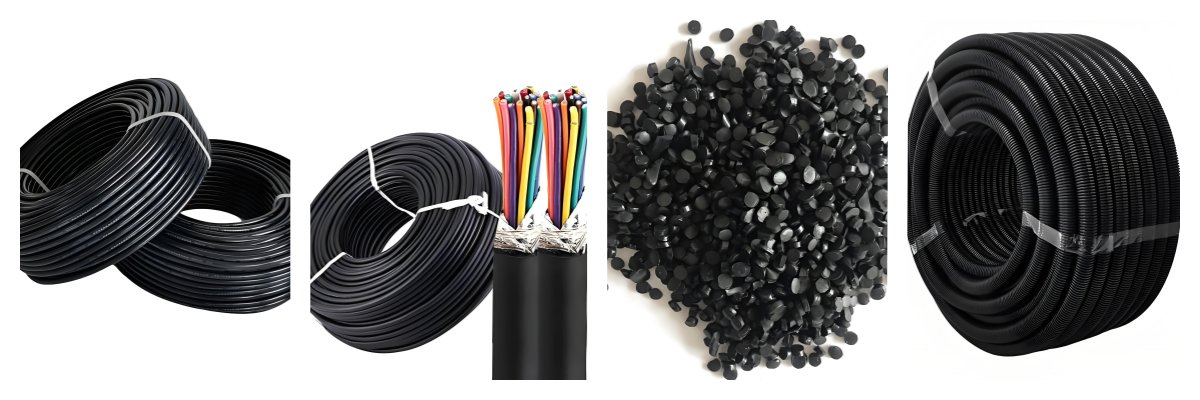

Applications:

Generally applicable to dark-colored and black PVC plastic materials and products.

Suitable for UL80/105℃ wires and cables, and computer peripheral wires.
Suitable for HI-90 cable sheath materials.
Suitable for GB/T 12706 (equivalent to international standard IEC 60502) 90℃ standard, compatible with general power/control cables.

Usage and Dosage

Dosage: 5～6PHR of the product per 100PHR resin

(Note: PHR refers to Parts Per Hundred of Resin)

Packaging and Storage

Packaging: 25kg paper-plastic compound bag.
Storage: Store in a cool, dry and well-ventilated place. It is advisable to use up the product within one year.

General Formula:

SG-65	YC-312	Plasticizer	CCR	CaCO₃	Epoxidized Soybean Oil	H-ST	PE-WAX
100	5～6	Determined by concentration	0～30	30～60	2～5	0.3～0.6	0.3～0.5

Notes:1. Customers need to appropriately adjust the lubrication system according to different processing machines and formulas. 2. In the formula system of relatively soft materials with a certain amount of chlorinated paraffin, reduce the dosage of stearic acid and PE wax, and test the precipitation performance.
