Calcium zinc stabilizer YC-315 for all colors 125℃ special wires for charging piles

Calcium zinc stabilizer YC-315 for all colors 125℃ special wires for charging piles

Description :

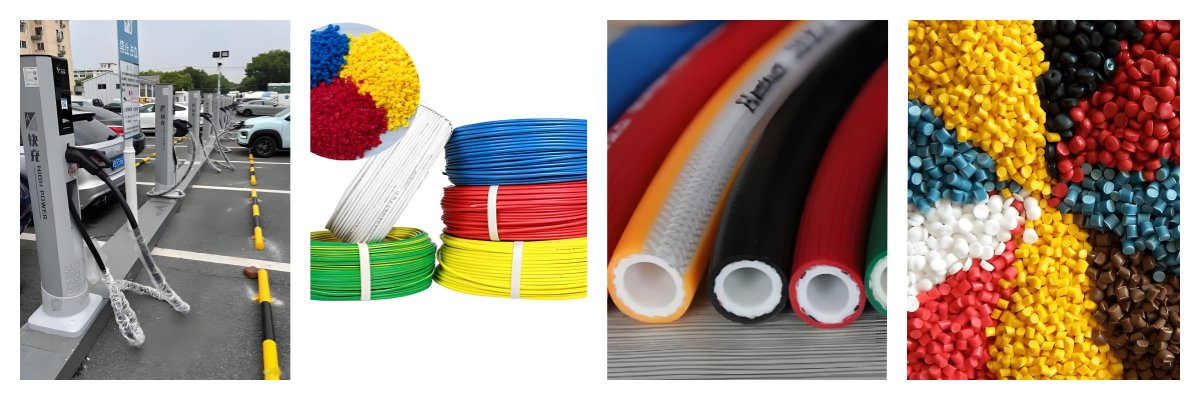

Inteam’s YC-315 is an environmentally friendly PVC calcium zinc heat stabilizer. It is manufactured using high-grade calcium and zinc fatty acids as raw materials, along with high-performance heat-resistant additives and primary and secondary antioxidants, processed through a special process. It is widely applicable to various PVC plastic materials and products, including white, light-colored, colored, mixed-color, and black PVC. Specifically, it can be used in the production of wires and cables and power cable materials conforming to HⅡ-90, J-90, and VDE90 standards, and is also suitable for the production of 125℃ charging pile special cables.

Chat Now Message Email

Product Description:

Main Components:

Ca-Zn series organic complex. Based on high-grade calcium fatty acid and high-grade zinc fatty acid, it is compounded with high-performance heat-resistant additives, primary and secondary antioxidants, etc., and processed through a special composite technology.

Physical Properties:

Appearance: Light yellow to white powder; Specific Gravity: 1.5±0.1

Characteristics:

Environmentally friendly, complying with the requirements of RoHS, REACH, PAHS and NO-16P.
Superior anti-precipitation performance when used in white, light-colored, colored, variegated and black PVC plastic materials and products.
Excellent color retention performance; there is almost no color difference in materials after long-term shutdown.
The products have bright and glossy appearance, with excellent weather resistance and no discoloration or fading when placed.
Resistant to high shear, no sticking particles during air cutting, and supports full-speed operation of extrusion equipment.
Less material discharge and rubber discharge during wire extrusion, resulting in low material waste.
Good dispersibility, fast temperature rise during powder mixing, and no powder flying.

Applications:

Generally applicable to white, light-colored, colored, variegated and black PVC plastic materials and products.

Suitable for HⅡ-90, J-90, VDE90 wires and cables, and power cable materials.
Suitable for 125℃ special wires for charging piles.

Usage and Dosage

Recommended Dosage: 8～12 PHR per 100PHR resin

(Note: PHR refers to Parts Per Hundred of Resin)

Packaging and Storage

Packaging: 25kg paper-plastic compound bag.
Storage: Store in a cool, dry and well-ventilated place. It is advisable to use up the product within one year.

General Formula:

SG-65	YC-315	Plasticizer	CCR	CaCO₃	Epoxidized Soybean Oil	H-ST	PE-WAX
100	8～12	Determined by concentration	0～30	30～60	2～5	0.3～0.6	0.3～0.5

Notes:

1.Depending on the processing machine and formula, customers need to appropriately adjust the lubrication system.

2.In the formula system of relatively soft materials with a certain amount of chlorinated paraffin, reduce the dosage of stearic acid and PE wax, and test the precipitation performance.

3.High-temperature resistant plasticizer is recommended.
