How ACR Processing Aid Improves PVC Plasticization & Melt Flow

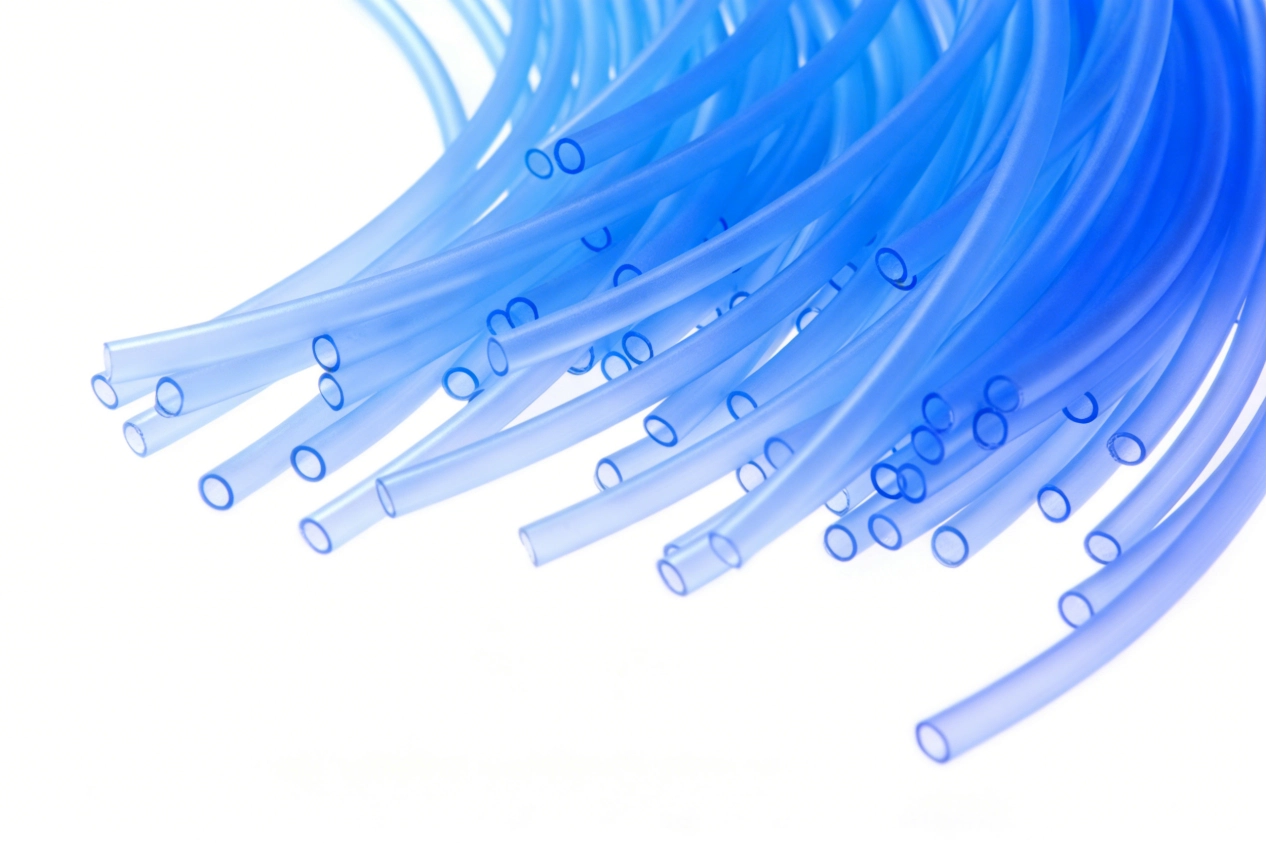

Polyvinyl chloride, or PVC, shows up everywhere in today’s buildings and systems. Factories use it widely for all sorts of items. These range from stiff window frames to bendable tubes in medical work. Yet working with the basic PVC resin brings its own set of real problems. Plain PVC without any changes feels brittle and snaps easily. It also loses stability when heat rises and stays very thick once it melts. To turn this starting material into strong finished goods, makers count on acrylic processing aids known as ACR. These special additives help the material blend together during work. They also let the melted plastic move more smoothly. At the same time, they leave the polymer’s original strong qualities untouched.

The Dynamics of PVC Processing

Unlike many other plastics that melt and flow without much trouble, PVC keeps a high thickness even during shaping. This thickness makes the material resist movement, even when the heat climbs high. During processing, the primary focus is not the glass transition temperature (Tg, near 80°C), which only indicates its solid state at room temperature, but rather its melting temperature (Tm) at approximately 212°C. The core processing challenge is that pure PVC resin begins to slowly degrade around 170°C—well below its melting point—and undergoes severe degradation (releasing HCl and carbonizing) by 200°C. In real factory work, though, teams handle mixed formulas instead of the pure resin alone. Thanks to the addition of heat stabilizers, these formulations gain the necessary thermal resistance. For unplasticized rigid PVC (UPVC), standard extrusion processing temperatures are strictly maintained between 160°C and 190°C.

At cooler levels around 120°C to 130°C, the PVC stays safe from damage. It simply does not soften enough to work well. On the other hand, pushing even stabilized UPVC formulations past 190°C—and especially reaching 200°C—triggers serious thermal breakdown. The material then releases sharp hydrogen chloride gas that can harm equipment. So the whole process demands careful balance. You need enough warmth for solid blending, yet you must stay clear of the danger zone. ACR processing aids step in right here. They speed up the blending step. This change lets the whole mix reach a smooth, fully workable state much earlier and with less effort.

Why Melt Strength is a Critical Factor

Getting good blending matters, but keeping the shape right after the material leaves the machine counts just as much. Once the hot melt exits the die, it faces pulling forces and quick cooling. The melt needs real strength to hold steady through these steps. Without enough strength, the material may sag, rip, or lose its exact size. Problems like these appear most often in foam boards or thin-walled shapes.

It helps to remember that ACR works only as a processing aid. It never acts like a plasticizer. High molecular weight acrylic modifiers build melt strength in a special way. They do not simply stretch out long chains. Instead, they create many connections between polymer chains. They raise the internal rubbing forces. They also push the tiny PVC particles to melt fast. All of this builds strong viscoelastic behavior. Such behavior proves essential when teams extrude detailed profiles that must keep exact sizes every single time.

How ACR Optimizes the Plasticization Process

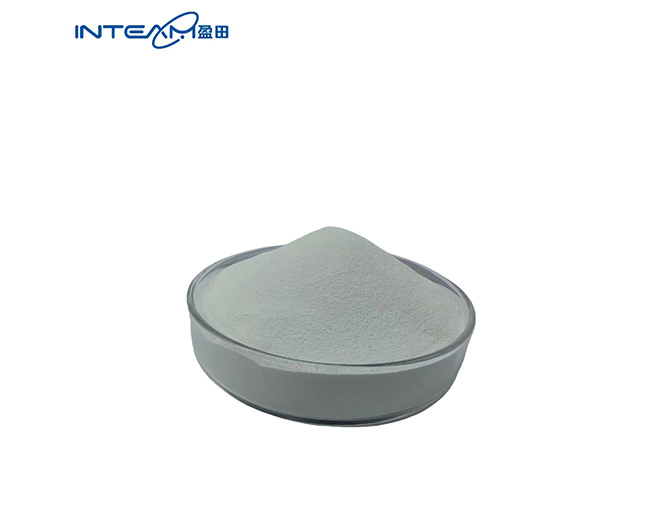

ACR stands for acrylate copolymer. Makers design it so the material mixes completely with PVC resin in every way that matters for heat and structure. This perfect match creates even distribution inside the polymer mix.

Facilitating Homogeneous Fusion

During extrusion, heat moves from the barrel walls by direct touch. At the same time, the spinning screws add force through rubbing and pressure. Early on, this energy can spread unevenly inside the chamber. Adding an ACR processing aid changes that picture. It raises the rubbing between PVC particles and the equipment surfaces. As a result, heat spreads faster and the force mixes more evenly. The particles then soften and join at the same moment across the whole batch. This quick shift turns the loose powder into one solid melt sooner in the extrusion line.

Achieving Thermal Efficiency

Because ACR speeds up the blending, teams can often adjust their heat settings with care. A small drop in barrel temperature still keeps the flow strong and steady. In everyday factory runs, good acrylic processing aids let workers cut temperatures by 5°C to 10°C. Flow stays the same or even gets better. Lower heat cuts energy use. It also gives a wider safety gap before any breakdown starts. Less heat stress during work leads to final parts that hold color longer, shine brighter, and last many years without trouble.

Enhancing Flow and Surface Integrity

Smooth flow during shaping protects the outside of every piece. Uneven movement can cause rough spots known as melt fracture, or shark skin. These marks hurt looks and also create weak points that fail later under stress. High-speed lines create strong rubbing and pressure right at the die opening. ACR improves the way the melt slides through. It lowers the push-back pressure inside the equipment. Certain ACR formulas adjust the melt’s thickness and stretch in just the right amounts. This control stops sudden jumps in flow. Walls stay even and sizes stay exact from start to finish.

Optimizing Surface Gloss

The choice of processing aid shows up clearly in the final shine. A well-blended and elastic melt forms a tight, even skin when it leaves the die. That tight layer reflects light strongly and gives a clean, bright look. Good rheology also keeps the melt from sticking to die walls. Less sticking means fewer streaks or marks from burned bits. The result is a smooth, attractive surface that customers notice right away.

The Strength Factor: Structural Resilience

Long-term toughness decides how well PVC parts hold up in real use. If blending stays incomplete or tiny gaps form inside, the final product turns brittle and breaks under light hits. ACR builds strength through chain connections and extra internal friction. The polymer net becomes tightly linked. When force hits the material, stress spreads out evenly instead of gathering at weak spots. Real test numbers show that the right ACR can lift impact resistance in stiff profiles by 10 to 15 percent.

Performance in Demanding Formulations

Some mixes pack in lots of filler, such as high amounts of calcium carbonate, or they use recycled material. These heavy loads fight against good blending and cut flexibility. Standard additives often fall short here. High-performance ACR processing aids push the material to blend anyway. They keep melt strength high and the mix even. This support lets factories run heavy filler loads while the final parts stay strong and reliable.

Conclusion

Every factory runs with its own machines, speeds, and mix recipes. One single additive rarely fits every case perfectly. At Inteam, the team follows a careful, numbers-based method to pick the right aid. They match the ACR exactly to the target formula. Whether the goal is better shine, steadier heat settings, or handling heavy fillers, the science points the way. Years of lab tests and real factory help let Inteam guide makers toward smoother runs. Contact us now and we welcome teams to check its technical guides. These resources help raise output speed and keep product quality steady day after day.

FAQs

Q: What is the primary function of an ACR processing aid in rigid PVC formulations?

A: It helps the polymer blend evenly across the batch. It also builds melt stretch through chain connections and makes the whole PVC mix easier to shape during extrusion.

Q: How does the incorporation of ACR affect thermal management during PVC extrusion?

A: The aid speeds up the softening step so teams can run slightly cooler barrel settings. This change saves power and keeps the material safely away from breakdown temperatures.

Q: What specific mechanisms allow acrylic modifiers to improve the extrudate’s surface finish?

A: ACR forms a tight, stretchy melt that cuts rubbing at the die and stops rough marks. The outcome is a solid outer layer that looks smooth and shiny.
